Super-Form TM Formwork Systems

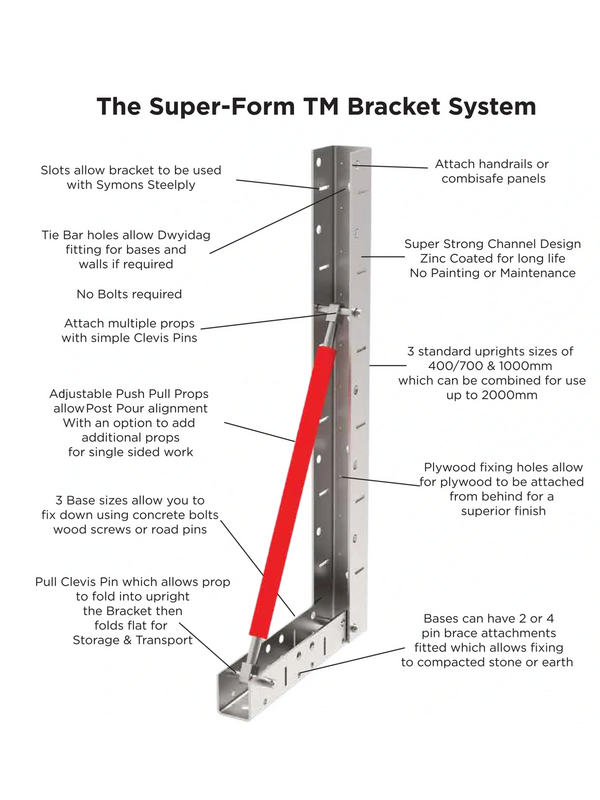

Super-Form TM Bracket System
- Super-Form is fast and easy to use, just fix down, plumb up, add ply and pour, its that easy, anyone can use Super-Form.
- Strong & Lightweight, a true Hand Fit Solution to all your formwork needs.
- Whether you're working on slabs, beams, pile caps, soffits, radius formwork, sheet pile capping beam formwork, or irregular shapes, there's nothing the Super-Form formwork system can't handle, boxouts, pipes and voids are easily formed. .
- No bolts required, just simple clevis pins with clips, our system needs no tools for assembly, folds flat for easy storage, and is perfect for low cost delivery on the palletised network for N.I & Eire.
- Available in three convenient standard bracket sizes 400mm, 700mm, and 1000mm with option to join for heights from 400mm up to 2000mm.
- We offer three uprights sizes 400 / 700 & 1000 which can be joined up to 2000mm.
- We offer three base sizes (85mm, 230mm, and 420mm) to fit in tight spaces.
- Just 6 main components offers dozens of variations for almost any pour.
- The adjustable push-pull props allow for pre- pour & post-pour adjustments.
- Our versatile formwork system can be used independently or as an adjustable prop for timber formwork or with Symons steel ply.
- You can pour straight or radius slabs, bases, walls, and sheet pile capping beams, achieving a better finish than traditional panel systems, its also much lighter and is a true hand set system.
- Constructed from strong 5mm thick zinc-coated channel they won’t rust and have a lifespan of over 25 years plus.
- Easily add optional tie bars for beams and wall pours with ready made holes.
- Handrails or even Combi-safe panels can be easily attached on slab edge pours.
- Secure brackets down with concrete bolts, wood screws, or road pins.
- Super-Form cuts carbon use by up to 80%, reduces waste and timber use, costing 60% less per m2 compared to traditional timber formwork.

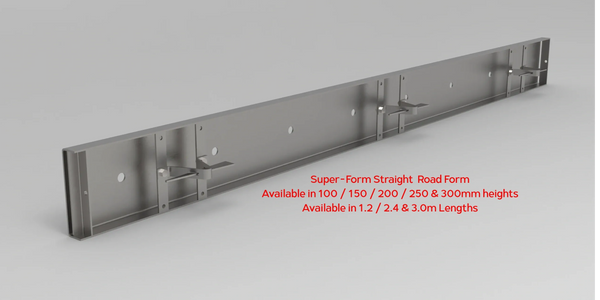

Super-Form TM Road Forms
- Sick of rusty, twisted and bent road forms, we have the solution, our patented road form is like nothing else on the market, its Faster to use, stronger and will last longer, ours is also the only system on market that turn into a slab edge form easily that's perfect for high rise.
- Super-Form TM Road Form is unique, its patented joining system means No slides or bolts at joints, just push 2 forms together and they interlock with No fixings.
- Unique fixing attachments means you can have 1, 2 or 3 pin brace holders which simply bolt on.
- Swap pin brace holder for an adjustable push pull prop for use on high rise slab edge formwork and attach handrails or Combi-safe panels easily.
- Makes High Rise construction Faster / Safer & Sustainable.
- Ability to stack road forms together for additional height.
- Internal corners make corners much easier to deal with.
- Work in from corner and fill any gap with our Ply attachment.
- Available in 100 /150 / 200 / 250 & 300mm heights.
- Available in 1.2 / 2.4 & 3.0m lengths, makes any pour easy.
- Design means our road forms don't bend or buckle, they stay straight!
- Our hire fleet Road Forms come zinc galvanised as standard, so no rust with a very long lifespan.
- Our Road Forms for sale can be purchased with or with out dowel holes and zinc coated or plain steel.
- The strongest, most versatile & innovative road form system on the market.
- The Best Road Form system in the World, don't buy over and over again and end up with a rusty bent and twisted form, choose the best road form on the market and buy once, ours will stay straight, don't want to buy then just hire!
